Following example explains how to compose a room.

Component list

  • Panels - 80 mm thickness - 1140 mm width
    • nr. 12 - length 2500 mm
    • nr. 3 - length 3540 mm
  • Panel joints
    • nr. 6 - external corner mm 50x150x4000 - steel
    • nr. 4 - internal section mm 30x30x6000 - aluminium
    • nr. 6 - internal section mm 66x66x4000 - PVC (to overlap to the aluminium one)
    • nr. 4 - internal section 3 way corner
    • nr. 3 - "U" section - mm 80x6000 - PVC



Following drawings explain how to connect prefabricated panels to compose a room.

Please download them in Adobe Acrobat format from links below.

doc H113W - ROUNDED HORIZONTAL JOINT FOR ROOM AT 0° C
h113w document

doc H114W - ROUNDED VERTICAL JOINT FOR ROOM AT 0° C
h114w document

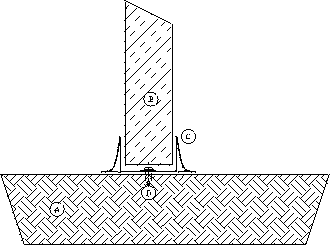

doc H119W - ROUNDED GROUND SECTION FOR ROOM AT 0° C
h119w document

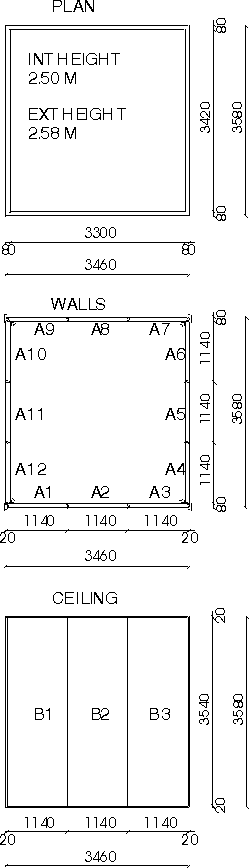

composition plan
